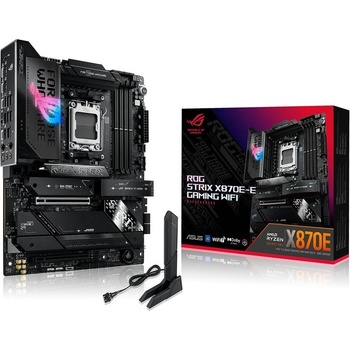

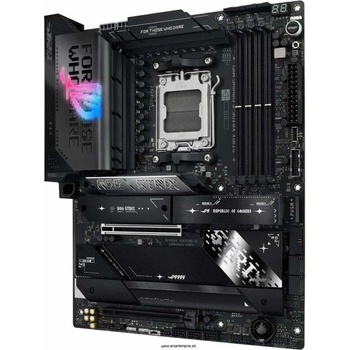

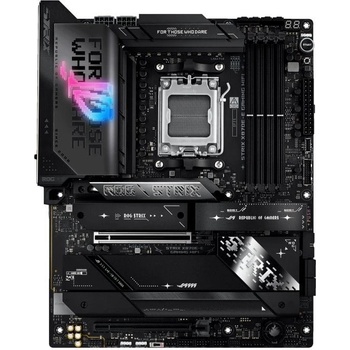

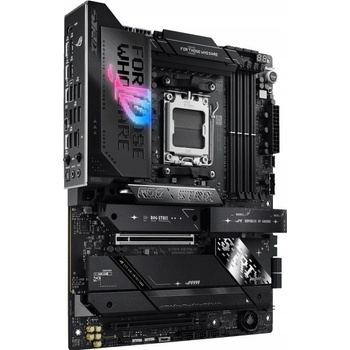

Asus ROG STRIX X870E-E GAMING WIFI

Základná doska AMD X870E formátu ATX s 18+2+2 napájacími fázami, Dynamic OC Switcher, Core Flex, sloty DDR5 s AEMP a technológiou NitroPath DRAM, WiFi 7 s ASUS WiFi Q-Antenna, päť slotov M.2, PCIe® 5.0 s PCIe Slot Q-Release Slim, dva porty USB4®, USB 20 Gb/s Type-C® s PD 3.0 až 30 W, AI overclocking, AI Cooling II, AI Networking II a osvetlenie Aura Sync RGB.

• Pripravená na pokročilé AI PC: Je navrhnutá pre budúce AI výpočty vďaka výkonu a konektivite, ktoré sú potrebné pre náročné AI aplikácie.
• Socket AMD AM5: Pripravená na desktopové procesory AMD Ryzen™ radov 9000, 8000 a 7000
• Inteligentné ovládanie: Exkluzívne technológie ASUS AI Overclocking, AI Cooling II, AI Networking II a AEMP zjednodušujú nastavenie a zvyšujú výkon
• Technológia ROG Strix na pretaktovanie: Dynamic OC Switcher, Core Flex, Asynchronous Clock a PBO Enhancement
• Robustné riešenie napájania: Riešenie napájania 18 + 2 + 2 dimenzované na 110 A na fázu s dvoma napájacími konektormi ProCool II, vysoko kvalitnými tlmivkami zo zliatiny a odolné kondenzátory zaisťujú podporu viacjadrových procesorov
• Optimalizovaná konštrukcia chladenia: Masívne chladiče s integrovaným krytom I/O a vysoko vodivými tepelnými podložkami sú spojené tepelnou trubicou v tvare písmena L
• Podpora najmodernejších M.2: Tri integrované sloty PCIe® 5.0 M.2 a dva sloty PCIe 4.0 M.2, každý s rozsiahlym riešením chladenia
• Bohaté možnosti pripojenia: Dva porty USB4® Type-C, USB konektor 20 Gb/s Type-C® na zadnom I/O paneli s PD 3.0 až 30 W a USB Wattage Watcher, desať ďalších portov USB 10 Gb/s, PCIe 5.0 x16 SafeSlots, port HDMI™
• Vysoko výkonné sieťové pripojenie: Integrovaná WiFi 7 (802.11be) s Realtek 5 Gb Ethernet
• Vhodná pre DIY: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, tlačidlo Štart, tlačidlo BIOS FlashBack™, tlačidlo Clear CMOS a predmontovaný I/O panel
• Pohlcujúci zvuk: Kodek ROG SupremeFX ALC4080 so zosilňovačom Savitech SV3H712 a Dolby Atmos®
• Bezkonkurenčná personalizácia: Exkluzívne osvetlenie ASUS Aura Sync RGB s tromi adresovateľnými headermi Gen 2
• Renomovaný software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-dňová bezplatná skúšobná verzia), súčasťou balenia 60-dňové skúšobné predplatné AIDA64 Extreme a intuitívny ovládací panel UEFI BIOS

Špecifikácia:

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD X870E

Memory 4 x DIMM slots, max. 192GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8400+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM*

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

NitroPath DRAM Technology

ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• * Supports max. 4K@60Hz as specified in HDMI 2.1.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
• *** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

• Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
• * Specifications vary by CPU types.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**

AMD Ryzen™ 8000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)***

M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)***

AMD X870E Chipset

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU.
• * M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
• ** M.2_2 & M.2_3 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.

Ethernet 1 x Realtek 5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.

Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

• * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

USB

Rear USB (Total 13 ports) 2 x USB4® (40Gbps) ports(2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)** 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)

Front USB (Total 11 ports) 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports

• USB Type-C® power delivery output: 5V/3A
• * USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback

Audio Features

• Audio Shielding
• Savitech SV3H712 AMP
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge) 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers

Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors

Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports

USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over Voltage jumper 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

Special Features

Extreme Engine Digi+ - 5K Black Metallic Capacitors

ASUS Q-Design

• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• Q-Antenna
• Q-Code
• Q-Dashboard
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

• M.2 heatsinks
• M.2 heatsink backplate
• VRM heatsink design

• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Clear CMOS button
  • ProCool II
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM

Aura Sync - Addressable Gen 2 headers

Software Features

ROG Exclusive Software

• ROG CPU-Z
• Dolby Atmos

ASUS Exclusive Software

Armoury Crate

• AIDA64 Extreme (60 days free trial)
• Aura Creator
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• GameFirst
• HWiNFO
• Power Saving

ASUS Driver Hub

ASUS GlideX

TurboV Core

USB Wattage Watcher

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI

BIOS EZ Mode - ASUS

MyHotkey

Dynamic OC Switcher

FlexKey

BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables 2 x SATA 6Gb/s cables

Additional Cooling Kit 1 x Thermal pad for M.2 22110

Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 2 x M.2 Q-Slides 1 x ROG key chain 1 x ROG Strix stickers 5 x M.2 Rubbers

Documentation 1 x Quick start guide

Operating System

Windows® 11 64-bit

Form Factor

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
