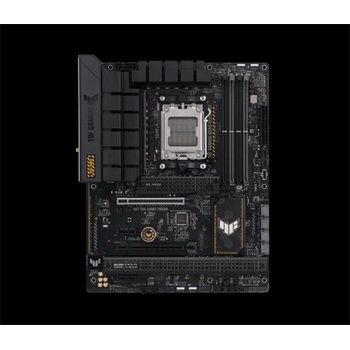

Asus TUF GAMING B650-PLUS WIFI

ASUS TUF GAMING B650-PLUS WIFI preberá všetky základné prvky najnovších procesorov AMD Ryzen série 7000 a kombinuje ich s funkciami pripravenými na hry a overenou odolnosťou.

Táto základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným a stabilným výkonom pre maratónske hranie.

Základné dosky TUF GAMING tiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu zlyhať.

Z estetického hľadiska tento model obsahuje robustné, tmavočierne a geometrické dizajnové prvky, ktoré odrážajú spoľahlivosť a stabilitu, ktorá definuje sériu TUF GAMING.

CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Chipset AMD B650

Memory "4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*"

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

• Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics 1 x DisplayPort* 1 x HDMI® port**

• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• * Supports 4K@60Hz as specified in HDMI 2.1.
• ** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s)

AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).

Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports

• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
• * M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.

Ethernet 1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth "Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2"

USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A)

Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio "Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"

Audio Features

• Audio Shielding
• Power pre-regulator reduces power input noise to ensure consistent performance
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit

• Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A)  1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks  1 x BIOS FlashBack™  button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s)

Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports

USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header

Special Features ASUS TUF PROTECTION

• DIGI+ VRM (- Digital power design with DrMOS)
• Enhanced DRAM Overcurrent Protection
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O

ASUS Q-Design

• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

• M.2 heatsink
• VRM heatsink design

• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeDIMM

Aura Sync

• Aura RGB header(s)
• Addressable Gen 2 header(s)

Software Features ASUS Exclusive Software

Armoury Crate

• Aura Creator
• Aura Sync
• Fan Xpert 4
• Power Saving
• Two-Way AI Noise Cancellation

AI Suite 3

• TurboV EVO
• DIGI+ VRM
• PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

MyAsus

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Manageability WOL by PME, PXE

Accessories Cables 2 x SATA 6Gb/s cables

Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x Rubber Package(s) for M.2 1 x Screw package(s) for M.2 SSD

Installation Media 1 x Support DVD

Documentation 1 x TUF Certification card 1 x User guide

Operating System "Windows® 11

Windows® 10 64-bit"

Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
