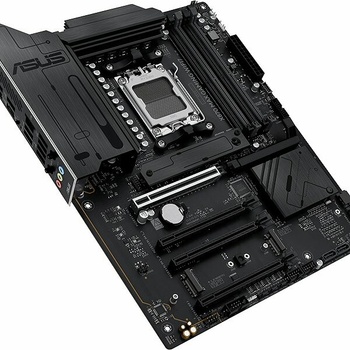

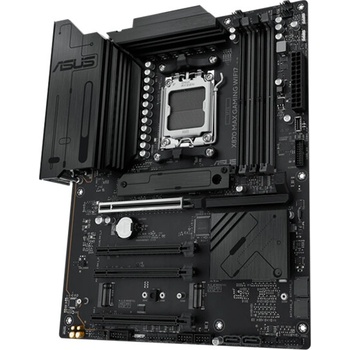

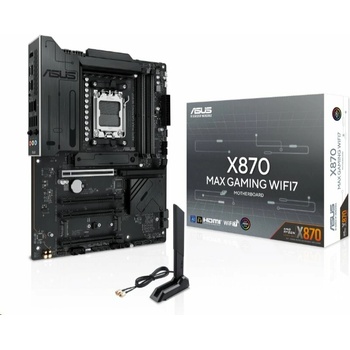

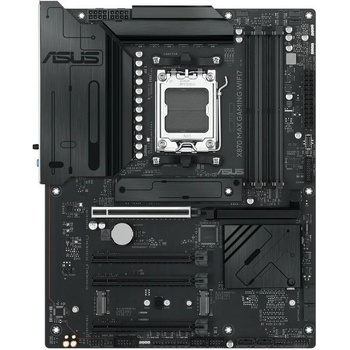

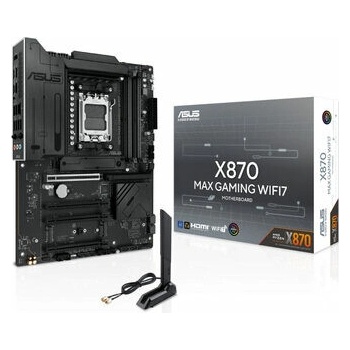

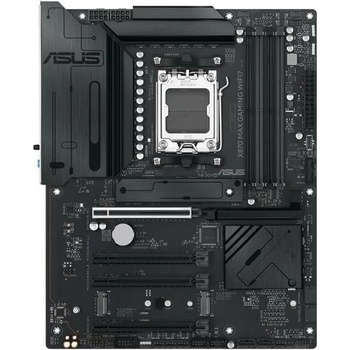

Asus X870 MAX GAMING WIFI7

X870

MAX GAMING WIFI7

Základné dosky ASUS série X870 sú odborne navrhnuté tak, aby naplno využili potenciál procesorov AMD Ryzen™ série 9000. Základná doska X870 MAX GAMING WIFI7, ktorá sa môže pochváliť robustným dizajnom napájania, komplexnými riešeniami chladenia a inteligentnými možnosťami ladenia, poskytuje používateľom a výrobcom počítačov svojpomocne rad optimalizácií výkonu prostredníctvom intuitívnych funkcií softvéru a firmvéru. Je navrhnutý tak, aby bol pripravený na počítač s pokročilou AI a ponúkal výkon a konektivitu potrebnú pre náročné aplikácie AI.

Špecifikácia:

CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to for CPU support list.

Chipset AMD X870 Chipset

Memory "4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*"

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics 1 x HDMI™ port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs***

• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• * Supports 4K@60Hz as specified in HDMI 2.1.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
• ** VGA resolution support depends on processors" or graphic cards" resolution.

Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode)***

• Please check the PCIe bifurcation table on the support site (
• * Specifications vary by CPU types.
• ** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.

- To ensure compatibility of the device installed, please refer to for the list of supported peripherals.

Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**

AMD X870 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

• 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required.
• The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.
• * Specifications vary by CPU types.

RAID Support AMD RAIDXpert2 Technology

• Ryzen™ 9000 Series Processors: RAID 0/1/5/10
• Ryzen™ 8000 Series Processors: RAID 0/1
• Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet 1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth "Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4*** * Wi-Fi features may vary depending on the operating system.

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For Windows 10, only Wi-Fi 6 is supported.

• * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer"s website for the latest specifications."

USB Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x USB Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A

Audio "Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"

Audio Features

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports 2 x USB4 (40Gbps) (2 x USB Type-C) 1 x USB 10Gbps port (1 x USB Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A)  1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks  1 x BIOS FlashBack™ button

Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers

Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors

Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports

USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header

Special Features ASUS 5X PROTECTION III

• DIGI+ VRM (- Digital power design with DrMOS)
• LANGuard
• Overvoltage protection
• SafeSlot
• Stainless-steel back I/O

ASUS Q-Design

• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS Thermal Solution

• Flexible M.2 heatsink
• VRM heatsink design

• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot

Aura Sync - Addressable RGB Gen 2 headers

Software Features ASUS Exclusive Software

Armoury Crate

• Aura Creator
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)

ASUS AI Advisor

ASUS DriverHub

ASUS GlideX

TurboV Core

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
  • ASUS MyHotkey

BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Manageability WOL by PME, PXE

Accessories Cables 2 x SATA 6Gb/s cables

Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD

Documentation 1 x Quick start guide

Operating System Windows 11

Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
