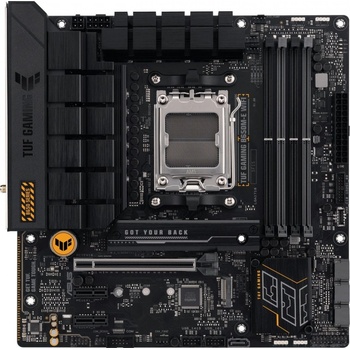

Asus TUF GAMING B650M-E WIFI

ASUS TUF GAMING B650M-E WIFI preberá všetky základné prvky najnovších procesorov AMD Ryzen série 7000 a kombinuje ich s funkciami pripravenými na hry a overenou odolnosťou.

Táto základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným a stabilným výkonom pre maratónske hranie.

Základné dosky TUF GAMING tiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu zlyhať.

Z estetického hľadiska tento model obsahuje robustné, tmavočierne a geometrické dizajnové prvky, ktoré odrážajú spoľahlivosť a stabilitu, ktorá definuje sériu TUF GAMING.

Špecifikácia:

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Chipset

AMD B650

Memory 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

OptiMem II

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics 2 x DisplayPort** 1 x HDMITM port***

• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• ** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot

AMD B650 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet 1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"

Audio Features

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers

Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports

USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

• ASUS TUF PROTECTION
  • DIGI+ VRM (- Digital power design with DrMOS)
  • ESD Guards
  • TUF LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O

ASUS Q-Design

• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

• M.2 heatsink
• VRM heatsink design

• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot Core+
  • SafeDIMM

Aura Sync

• Aura RGB header
• Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancelation

AI Suite 3

• TurboV EVO
• DIGI+ VRM
• PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

Norton 360 for Gamers(60 Days Free Trial)

WinRAR

UEFI BIOS

• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables 2 x SATA 6Gb/s cables

Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x TUF Gaming sticker 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD

Documentation 1 x TUF Certification card 1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
